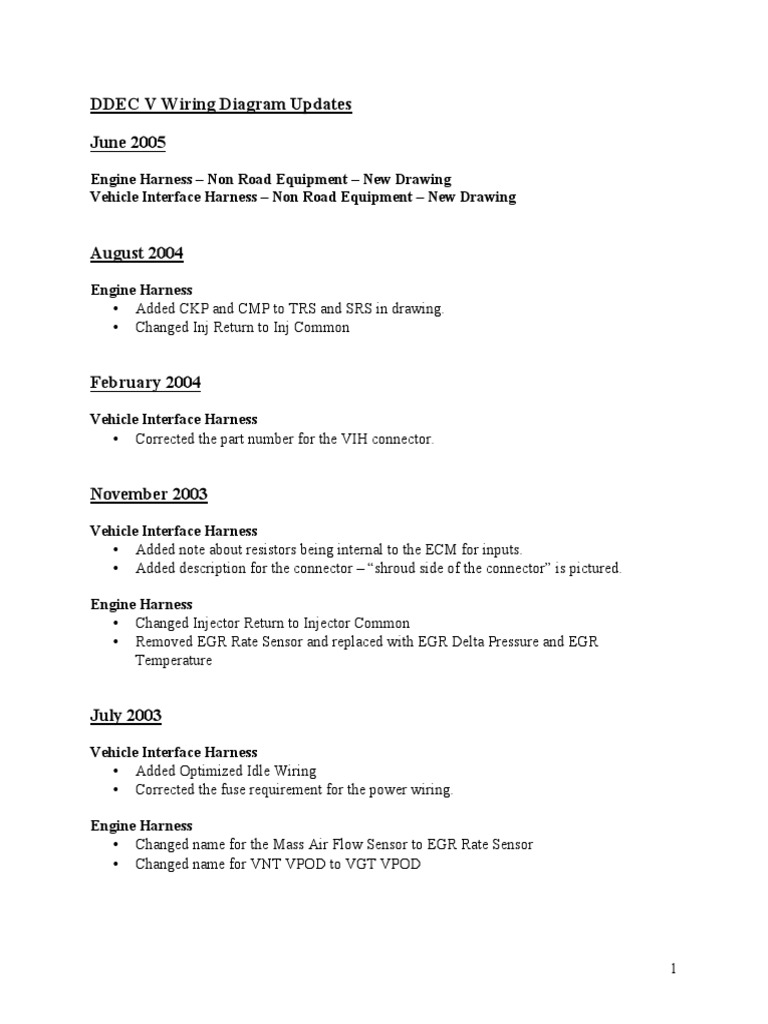

This is a 4 page complete wiring diagram set for the Detroit Diesel DDEC V EGR Engine with Jake Brake includes Engine & Cab. Paper Page is 16 x 24 inches.Chapter 42 Chapter 43 Chapter 44 Chapter 45 Chapter 46 Electrical Wiring, Connector, Bosch Diesel Systems EDC Management Logic Block Diagrams and Engine Testing Detroit Diesel Electronic Controls (DDEC).. The document provides detailed information on the Vehicle Interface Harness for the Detroit DDEC V Series 60, including how to read the wiring diagrams and the symbols used. It outlines the pin connections, power wiring, and various components associated with the 68-way connector. Additionally, it specifies the functions of different connectors and their respective wiring color codes.
Figure 9-1 EGR Valve Coil Wiring All information subject to change without notice. Page 110 There is an update program for the DDEC V troubleshooting in 6.0 DDDL.. View and Download Detroit Diesel Engine DDEC instruction manual online.
