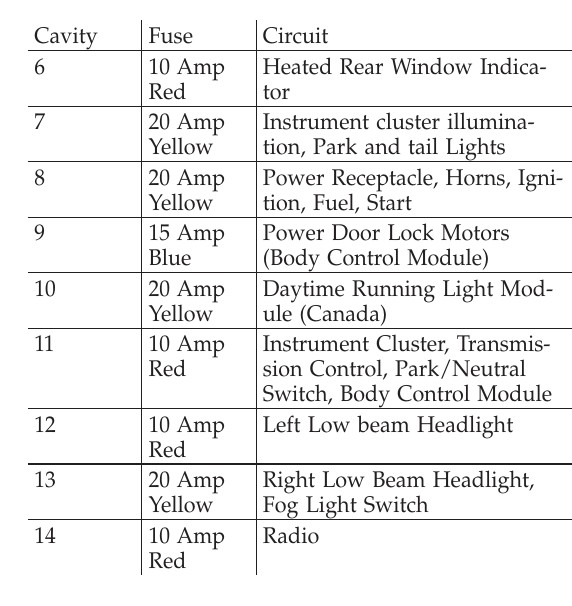

To check a fuse, look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a new one of the identical size and rating. Fuses of the same amperage can be temporarily borrowed from another fuse location if a fuse goes out. Replace the fuse as soon as possible.. 2005 Chrysler Sebring fuse box diagram. This Sebring has 2 different fuse boxes: Interior fuse panel diagram. Engine Compartment Fuse Box diagram. Type No. Description; Fuse ATO . 30A: 1: Blower Motor. Fuse MINI . 10A: 2: Right High Beam Headlight, High Beam Indicator. Fuse MINI . 10A: 3: Left High Beam Headlight.
2003 Chrysler Sebring Fuse Box Diagram / 2007 Chrysler SebringFuse BoxFuse Box Diagram Chrysler Sebring (ST22/JR; 20012006)Underhood fuse box diagram Chrysler Sebring (Coupe) (2001, 2002, 20032005 Chrysler Sebring Convertible Fuse Box Diagram Wiring Diagram2005 Chrysler Sebring Convertible Fuse Box DiagramFuse Box2005 Chrysler Fuse Box Diagram00 Sebring Ac Fuse Diagram2005 Chrysler Sebring Fuse. Mini. 15 amp, light blue. A/cChrysler Sebring Fuse Box Cover. CONVERTIBLE,. SEDAN,. UNDERChrysler Sebring (2001 2006) fuse box diagram Auto Genius2005 Chrysler Sebring Convertible Fuse Box Diagrams2010 Chrysler Sebring Fuse Box Diagram Wiring Site ResourceFuse box Chrysler Sebring 200120072007 Chrysler Sebring fuse box diagram StartMyCar2010 Chrysler Sebring Fuse Box Diagram Drivenheisenberg2005 Chrysler Sebring Convertible Fuse Box Diagram Wiring Diagram2005 Chrysler Sebring fuse box diagram StartMyCarChrysler Sebring 20012006 Fuse Box Location and Diagram YouTube2005 Chrysler Sebring Convertible Fuse Box DiagramChrysler Sebring 2002 Fuse Box Diagram20012006 Chrysler Sebring Fuse Box and Relay Locations YouTube2005 Chrysler Sebring Fuse Box Location YouTubeChrysler Sebring & Dodge Avenger (20072010) Fuse Diagram YouTubeChrysler Sebring Fuse Box Diagram submited images Pic2FlyFuse box diagram Chrysler Sebring 20012007Dodge Stratus/Chrysler Sebring AC Relay AC Fuse YouTubeChrysler Sebring Fuse Box MotoGuruMag2008 Chrysler Sebring Fuse Box Diagram exatin.info
DOT.report provides a detailed list of fuse box diagrams, relay information and fuse box location information for the 2005 Chrysler Sebring. Click on an image to find detailed resources for that fuse box or watch any embedded videos for location information and diagrams for the fuse boxes of your vehicle.. Chrysler Sebring (2001 - 2006) - fuse box diagram. Year of production: 2001, 2002, 2003, 2004, 2005, 2006. Engine Compartment Fuse Box Chrysler Sebring - fuse.
